Semi Automatic Chain Link Fencing Machine Manufacturer in India

Semi-Automatic Chain Link Fencing Machine — Reliable Production at the Right Investment

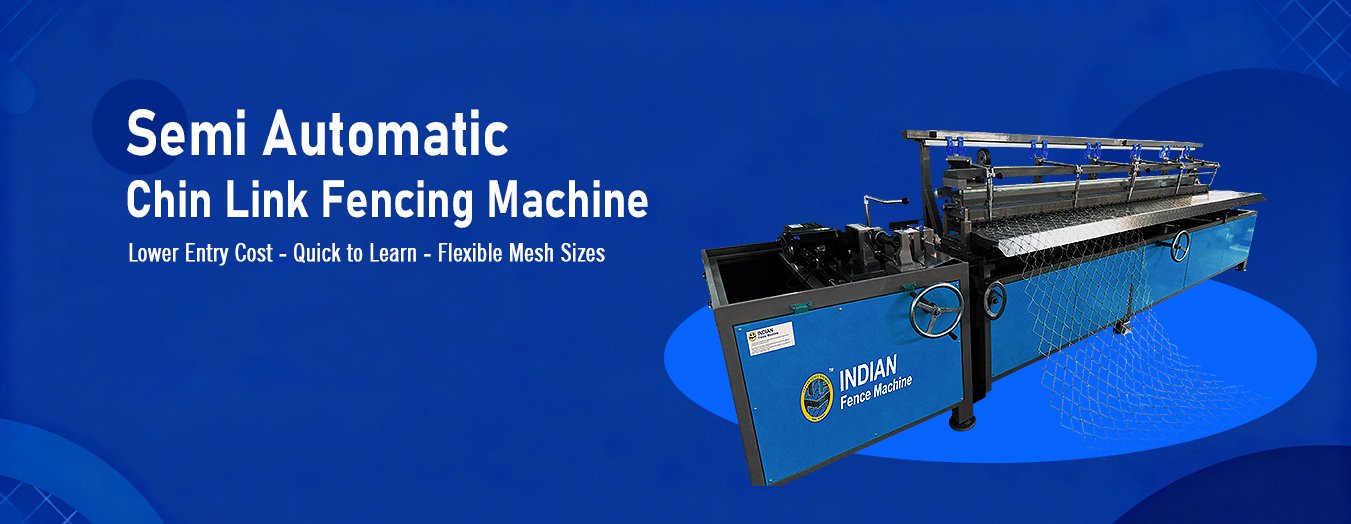

Semi automatic chain link fencing machine Chetak 2026 — Indian Fence Machine manufacturer Udaipur India
Product Introduction

Semi Automatic Chain Link Fencing Machine — Technical Specifications

Indian Fence Machine's semi-automatic chain link fencing machine is purpose-built for manufacturers, entrepreneurs, and wire processors who want to enter or expand chain link fence production without the upfront investment of a semi automatic system — and without compromising on build quality, component grade, or long-term reliability.

At its core, the machine runs a 6 HP Delta servo motor with an oil-and-grease-free gear reducer — the same servo system used in our fully automatic range. There is no clutch wire and no belt in the drive system, which removes the two most common maintenance pain points from the machine's operational life. The result is stable, low-maintenance production that runs reliably across extended shifts with minimal unscheduled downtime.

The semi-automatic chain link fencing machine is controlled by a Delta PLC with a fully remote control interface. Wire feeding and weaving are handled automatically; the operator's role is to manage wire loading, monitor output quality, and handle roll changes — making this a practical one-to-two operator machine depending on your production pace and wire gauge.

With a compact footprint of just 20 × 8 ft, the semi-automatic chain link fencing machine fits easily into smaller factory spaces, godowns, and industrial sheds that cannot accommodate the longer bed of a semi automatic machine — without any sacrifice in mesh quality, wire compatibility, or machine durability.

Every unit is manufactured at our ISO 9001:2015 certified facility in Udaipur, Rajasthan, and delivered with on-site installation, operator training, and 24×7 after-sales support as standard.

Lower Investment — Same Component Grade as Fully Automatic

The semi-automatic chain link fencing machine costs significantly less than a fully automatic machine upfront — but is built using the same 6 HP Delta servo motor, Delta PLC, Schneider electrical panel, and Lapp wiring. You are not buying a cheaper machine. You are buying a simpler production workflow at a lower price point, with no compromise on the quality of components inside.

6 HP Delta Servo — No Belt, No Clutch Wire

The drive system uses a 6 HP Delta servo motor with an oil-and-grease-free reducer. There is no belt in the power train and no clutch wire — both of which are standard failure points and recurring replacement costs on older semi-automatic machine designs. Removing them means fewer breakdowns, lower maintenance spend, and a cleaner machine to operate.

Compact 20×8 ft Footprint — Works in Smaller Spaces

At 20 × 8 ft, this is the most space-efficient machine in the Indian Fence Machine range. It fits comfortably in a standard industrial godown, workshop shed, or smaller factory layout — without requiring the 20 × 20 ft or 24 × 20 ft floor area needed by automatic machines. For businesses operating in rented or shared manufacturing space, this is a significant practical advantage.

Stable 24×7 Performance — Built for Long Shifts

Despite being a semi-automatic machine, the Chetak is designed and rated for continuous operation across extended shifts. The auto-tune servo system maintains consistent wire tension and weaving speed over long production runs — preventing the mesh size drift and edge quality variation that older mechanical semi-automatic machines develop after a few hours of operation.

Low Production Cost Per kg of Mesh

The semi-automatic chain link fencing machine runs on a low-maintenance drive system with no consumable belts or clutch wires to replace. Combined with the low running power load and single-operator productivity, this machine delivers a low cost-per-kg of finished mesh — making it commercially viable for small to medium volume fence manufacturers competing on price.

New Model Twist / Knuckle Locking — Versatile Edge Finish

The machine supports both twist and knuckle edge finishes through the New Model locking part, giving you flexibility to match different customer specifications without additional tooling or machine changeover time. Clean, tight edge binding on every roll reduces rejection rates and improves finished product presentation.

Semi-Automatic Chain Link Fencing Machine — Technical Specifications

Detailed components and features of the machine

Specification Details
Machine Type Semi-Automatic Chain Link Fencing Machine
Space Required 20 × 8 ft
Servo Motor 6 HP Delta Servo with Reducer
Gearbox Oil/grease-free reducer (maintenance-free)
Clutch / Belt None — belt-free, clutch-free design
Electric Panel Delta & Schneider Electrics
PLC Delta PLC
HMI / Drive / VFD Delta Company
SMPS Delta Company
Wiring Lapp Company
Other Electrical Parts Schneider Company
Servo System Auto-tune servo
Wire Payoff Stand 250 kg capacity
Weaving Machine Heavy-duty drive motor + gear
Locking Type New Model — Twist / Knuckle (selectable)
T-Screws Easy-adjustable "T" screws for mesh size setting
Auto Roll Yes — motor-driven
Control Type Fully remote control
Wire Types Supported GI, PVC-coated, SS 304
Wire Diameter Range 1.6 mm – 4.0 mm (GI/SS) · 3.0 mm – 5.5 mm (PVC-coated)
Mesh Size Range 30 mm – 110 mm
Moulds Included 5 dies (standard mesh sizes)
Coating Powder coat — anti-corrosion, anti-scratch, fade & chip-resistant
Certification ISO 9001:2015
Compactor Optional add-on

5 Interchangeable Dies (Moulds)

Standard mesh sizes from 30 mm to 110 mm included; switch mesh size between customer orders without buying separate tooling.

Professional Tool Kit

All tools required for installation, daily adjustment, and routine maintenance.

Extra Relay

Standby relay for the electrical panel kept on-site, so a relay replacement does not cause a production halt while waiting for a part.

Oil Dispenser

For lubricating mechanical joints during initial installation and commissioning.

Protective Gloves

Operator safety equipment for wire handling during setup and reel changeovers.

Wheels & Extra Spares

Additional wear parts supplied with the machine so your team can handle routine maintenance independently.

Compactor (Optional)

Available on request for sites without an existing compressed air supply.

Delta PLC and Schneider control panel for Chetak 2026 semi automatic chain link fencing machine
Advanced Technology

Complete Package — Everything Included at Delivery

High Quality Accessories

◆SMPS Delta Company
◆Drive Delta Company
◆HMI Delta Company
◆VFD Delta Company
◆Wire Lapp Company
◆Others Parts Schneider Company
◆PLC Delta Company
6 HP Delta servo motor with oil-free reducer — Chetak 2026 Semi Automatic Chain Link Fencing Machine

6 HP Delta Motor

6 HP Delta Motor
Reducer (Oil/grease free gearbox)

Complete Package — Everything Included at Delivery

Every semi-automatic chain link fencing machine from Indian Fence Machine ships as a complete production-ready package — no additional purchases required on delivery day.

5 Interchangeable Dies (Moulds)

Standard mesh sizes from 30 mm to 110 mm included. Change mesh size between customer orders without purchasing separate tooling.

Professional Tool Kit

Complete set of tools required for installation, daily adjustment, routine servicing, and preventive maintenance.

Extra Relay

Standby relay supplied for the electrical panel, helping avoid production delays while waiting for replacement parts.

Oil Dispenser

Supplied for lubricating machine joints and moving parts during installation, commissioning, and maintenance.

Protective Gloves

Safety gloves included for handling fencing wire during setup, reel loading, and roll change operations.

Wheels & Extra Spares

Additional wear parts and maintenance spares supplied with the machine so your team can handle routine servicing independently.

Compactor (Optional)

Available on request for customers who require compressed chain link mesh rolls or operate at sites without an existing compressed air supply.

Who Gets the Most from a Semi-Automatic Chain Link Fencing Machine

✔ First-Time Fence Manufacturers Entering the Business

If you are starting a chain link fence manufacturing business and want to minimise initial capital outlay while still operating a reliable, ISO-certified machine — the semi-automatic chain link fencing machine is the right starting point. Lower investment, proven components, and a clear upgrade path to fully automatic production as your order book grows.

✔ Small to Medium Volume Fence Producers

Manufacturers who produce between 500 and 1,000 kg of chain link mesh per shift and do not yet need the output of a fully automatic machine. The semi-automatic machine covers this volume efficiently without the additional capital cost or floor space of a larger machine.

✔ Wire Drawing Units Starting Downstream Production

Wire mills and wire drawing businesses looking to add chain link mesh production as a downstream product line — without committing to a full automatic production setup from day one. The semi-automatic machine allows you to start selling finished mesh, build a customer base, and scale when volume justifies the upgrade.

✔ Agricultural Contractors & Rural Entrepreneurs

Farm fencing contractors, rural entrepreneurs, and district-level distributors who want to manufacture chain link mesh locally for agricultural, livestock, and perimeter fencing applications in their region — and need a machine that fits within a small shed or workshop without a large power supply.

Where Chain Link Mesh from This Machine Is Used

Chain link mesh produced by this semi-automatic chain link fencing machine is widely used across agricultural, residential, commercial, and government fencing applications.

Agricultural & Farm Fencing

Ideal for field boundaries, livestock pens, poultry farms, orchard perimeters, and agricultural land protection projects.

Residential Compound Fencing

Used for garden boundaries, house perimeters, residential colonies, gated communities, and private property security.

Industrial Boundary Fencing

Suitable for securing factory premises, warehouses, workshops, storage yards, and industrial facilities.

School & Institutional Fencing

Commonly installed around playgrounds, sports courts, educational campuses, and institutional boundaries.

Construction Site Fencing

Provides temporary and semi-permanent boundary fencing for construction sites, infrastructure works, and development projects.

Rural & District-Level Projects

Used in government agricultural schemes, rural infrastructure projects, panchayat boundary fencing, and community development works.

Why Choose Indian Fence Machine

India's Trusted Manufacturer of Semi Automatic Chain Link Fencing Machines

5 Interchangeable Dies (Moulds)

Standard mesh sizes from 30 mm to 110 mm included; switch mesh size between customer orders without buying separate tooling.

Professional Tool Kit

All tools required for installation, daily adjustment, and routine maintenance.

Extra Relay

Standby relay for the electrical panel kept on-site, so a relay replacement does not cause a production halt while waiting for a part.

Oil Dispenser

For lubricating mechanical joints during initial installation and commissioning.

Protective Gloves

Operator safety equipment for wire handling during setup and reel changeovers.

Wheels & Extra Spares

Additional wear parts supplied with the machine so your team can handle routine maintenance independently.

Compactor (Optional)

Available on request for sites without an existing compressed air supply.

Explore More Fencing Machines from Indian Fence Machine

Need higher output or a more budget-friendly starting point? Browse our full range of chain link fencing machines.

Fully Automatic Chain Link Fencing Machine — 2X Output

Designed for manufacturers seeking maximum production capacity with dual-wire technology.

Semi-Automatic Chain Link Fencing Machine

An economical solution for businesses starting chain link mesh production.

High Speed Barbed Wire Machine

High-performance barbed wire manufacturing machine for security fencing applications.

Grassland Fencing Machine

Efficient fencing machine for agricultural, livestock, and grassland fencing production.

Frequently Asked Questions

Semi-Automatic Chain Link Fencing Machine

What is a semi-automatic chain link fencing machine?
A semi-automatic chain link fencing machine is an industrial machine that automates the core weaving and rolling process of chain link mesh production, while requiring the operator to manage wire loading, roll changes, and some adjustment steps manually. It produces the same diamond-pattern chain link mesh as a fully automatic machine — at a lower output per hour and lower initial investment — making it well-suited for small to medium production volumes and new fence manufacturing businesses.
What is the price of a semi-automatic chain link fencing machine in India?
Semi-automatic chain link fencing machine prices in India typically range from ₹3.5 lakh to ₹6.5 lakh depending on servo system quality, electrical components, and accessories included. Indian Fence Machine's semi-automatic machine uses Delta servo and PLC components with ISO 9001:2015 certified build quality — sold at factory-direct pricing with no dealer markup. Contact us for a current quote based on your wire gauge and installation location.
What is the difference between a semi-automatic and fully automatic chain link fencing machine?
A fully automatic chain link fencing machine handles wire feeding, weaving, rolling, and cutting automatically through PLC and servo control — requiring only one operator for oversight, and producing 1,200–1,600 kg per 8-hour shift. A semi-automatic machine requires more operator involvement at the wire loading and roll change stages, producing approximately 600–900 kg per 8-hour shift, but costs significantly less upfront and requires a smaller factory footprint (20 × 8 ft vs 20 × 20 ft). Both machines use the same Delta servo and PLC components from Indian Fence Machine.
How much can a semi-automatic chain link fencing machine produce per day?
Indian Fence Machine's semi-automatic chain link fencing machine produces approximately 600–900 kg per 8-hour shift depending on wire gauge and mesh size. In a two-shift operation this translates to 1,200–1,800 kg per day. Output per hour is lower than a fully automatic machine because some steps require operator handling, but the per-kg production cost remains competitive for small to medium volumes.
How many operators does a semi-automatic chain link fencing machine need?
The semi-automatic chain link fencing machine typically requires one to two operators depending on production pace. One operator can manage the machine at moderate speeds; at full running speed a second person helps with wire reel loading and roll collection. Indian Fence Machine provides hands-on operator training at your site with every machine delivery.
What wire types and mesh sizes does the semi-automatic chain link fencing machine support?
The machine supports GI wire (1.6–4.0 mm), PVC-coated wire (3.0–5.5 mm), and SS 304 wire (1.6–4.0 mm). Mesh opening sizes from 30 mm to 110 mm are supported using the 5 interchangeable dies included with the machine. Custom mesh sizes are available with additional tooling on request.
What space is needed for a semi-automatic chain link fencing machine?
The semi-automatic chain link fencing machine requires only 20 × 8 ft of working floor space — approximately 160 sq ft. This is the most compact machine in the Indian Fence Machine range and fits comfortably inside a standard industrial godown, small factory shed, or rented workshop space without any structural modification.
Can I upgrade from a semi-automatic to a fully automatic machine later?
Yes. Many Indian Fence Machine customers start production on a semi-automatic machine, build their order book and client base, and then upgrade to a fully automatic or double wire machine as volume grows. Indian Fence Machine provides consultation on the right upgrade path based on your production data — and our regional service network ensures continuity of support throughout both machines' operational lives.
Does Indian Fence Machine provide installation and support for the semi-automatic machine?
Yes. Every semi-automatic chain link fencing machine purchase includes on-site installation by our technical team, hands-on operator training at your factory, and 24×7 after-sales support by phone and WhatsApp. Regional service contacts are active in Maharashtra, Tamil Nadu, Jharkhand, and Rajasthan for in-person support.
